Nova 3D GEM3 Max Jewelry Resin 3D Printer

The Nova 3D GEM3 Max Jewelry Resin 3D Printer is designed for jewelry professionals who need a larger working area without compromising fine detail. Its high-resolution printing system, powerful UV exposure, and 211 × 118 × 120 mm build volume make it suitable for producing detailed jewelry models, patterns, and prototypes.

With a 15120 × 6230 resolution and a pixel size of just 14 × 19 μm, the GEM3 Max is built to reproduce intricate designs, delicate edges, and fine surface details. Its larger build area also allows jewelry workshops and designers to produce multiple models in a single print job.

Key Features of Nova 3D GEM3 Max

Designed for Jewelry 3D Printing

The Nova 3D GEM3 Max is particularly suited to jewelry design and production workflows where small details and clean model geometry are important.

It can be used for rings, pendants, earrings, intricate patterns, jewelry prototypes, and casting patterns, depending on the resin and production process being used.

The larger build volume provides more room for arranging multiple jewelry pieces, helping users make better use of each print cycle.

High-Resolution Printing for Fine Jewelry Details

The GEM3 Max features a 15120 × 6230 resolution and a 14 × 19 μm pixel size. This high-resolution exposure system helps reproduce fine design elements and intricate geometries.

For jewelry applications, this can be especially useful when working with delicate patterns, small engravings, sharp edges, and complex surface details.

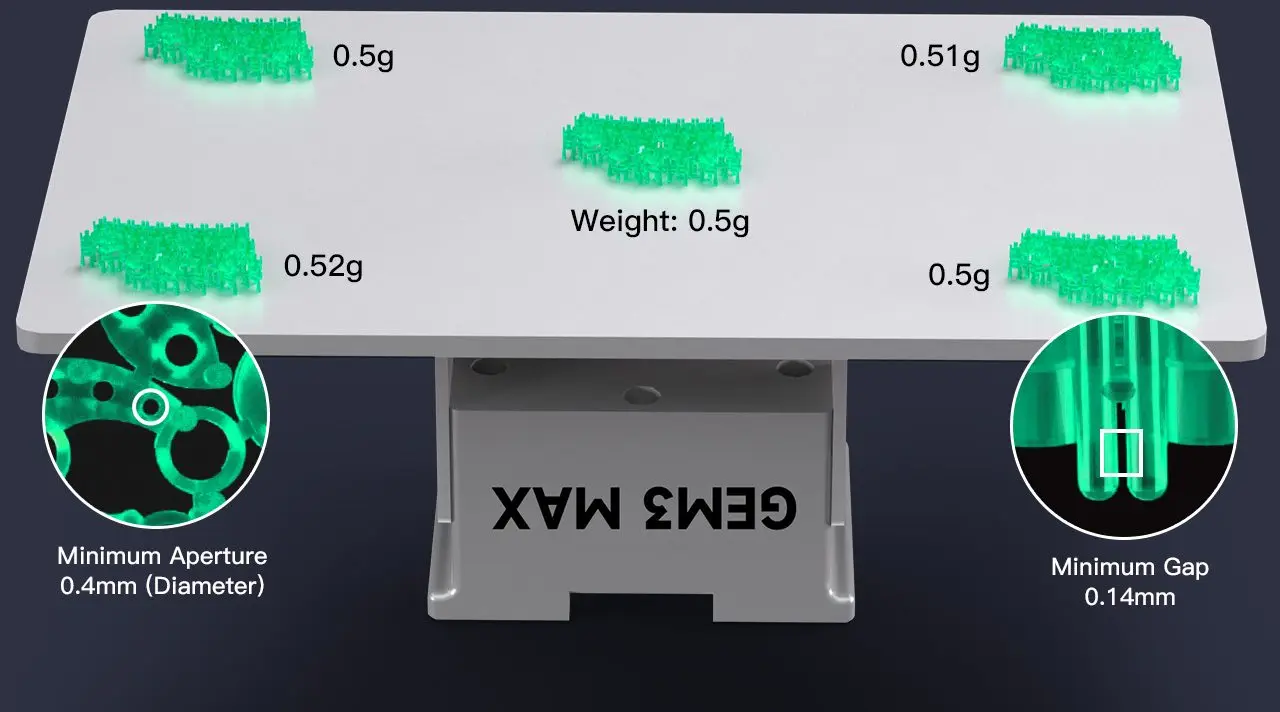

Larger Build Volume for Production

One of the main advantages of the GEM3 Max jewelry resin 3D printer is its 211 × 118 × 120 mm build volume.

Compared with smaller desktop resin printers, the additional build area gives jewelry designers more flexibility when arranging models. Multiple pieces can be positioned within the same build, making the printer suitable for small-batch jewelry production.

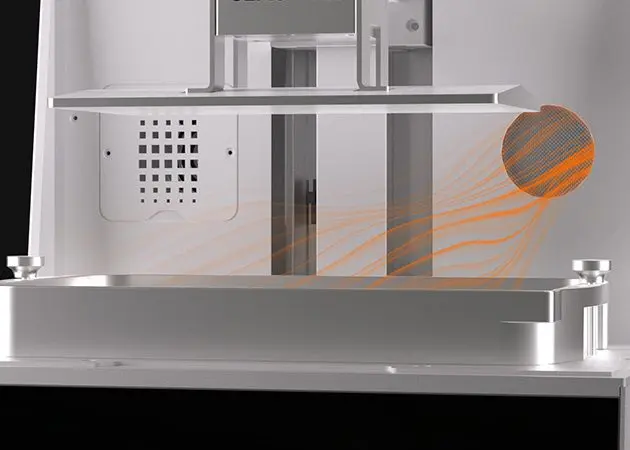

Advanced 7th-Generation COB Light Source

Nova 3D uses a 7th-generation COB light source with a light homogenizer in the GEM3 Max.

The system provides an optical power intensity of 5000 μW/cm² at a 405nm UV wavelength. Consistent UV exposure is important when producing detailed resin models and maintaining reliable curing across the build area.

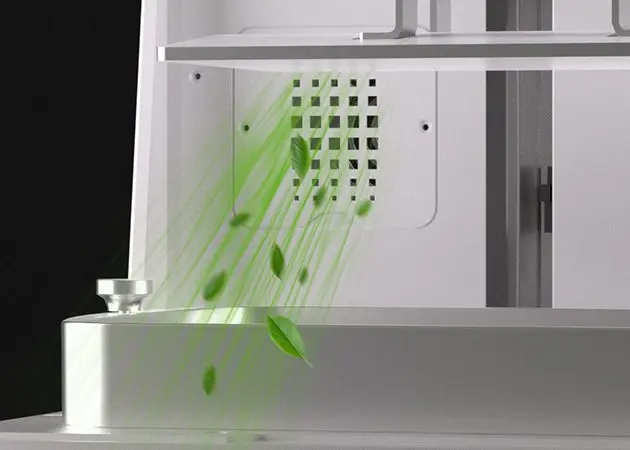

The printer also features a 4th-generation integrated air-cooling system to support stable operation during extended printing.

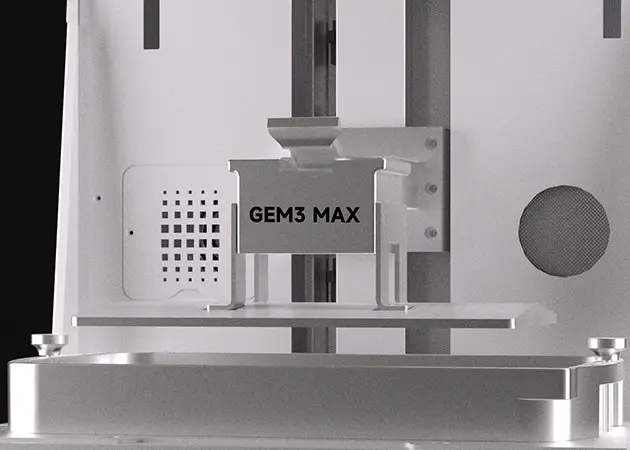

Industrial Motion Components

The GEM3 Max uses an industrial ball screw and industrial stepper motor for its motion system.

This setup provides controlled vertical movement during printing and helps maintain consistent layer positioning. For detailed jewelry models, stable movement can contribute to better dimensional consistency and model quality.

Flexible Layer Thickness

The printer supports layer thicknesses from 20 μm to 200 μm, with 20 μm increments.

Jewelry professionals can select finer layers when surface detail is the priority. Higher layer thicknesses can be useful when print efficiency is more important for suitable models.

Up to 70 mm/h Printing Speed

The Nova 3D GEM3 Max has a rated printing speed of up to 70 mm/h.

The actual speed depends on factors such as resin selection, layer thickness, exposure settings, model geometry, and slicing parameters. This flexibility allows users to balance print quality and production time according to their workflow.

Jewelry Applications

The GEM3 Max is suitable for a variety of jewelry resin 3D printing applications, including:

• Ring models and patterns
• Pendant designs
• Earrings and small jewelry pieces
• Intricate jewelry prototypes
• Casting patterns
• Custom jewelry designs
• Small-batch jewelry production
• Detailed decorative models

For casting applications, users should select a resin specifically developed and validated for their intended casting workflow.

Built for Jewelry Workshops and Designers

The larger build area of the GEM3 Max makes it a practical option for jewelry businesses that need more production capacity from a desktop resin 3D printer.

Instead of focusing only on individual high-detail models, the GEM3 Max jewelry 3D printer gives designers additional space to arrange multiple pieces within one build. This can make it useful for custom jewelry production, prototyping, and small production runs.

Compatible Slicing Software

The Nova 3D GEM3 Max supports several popular resin printing slicers, including NovaMaker, Chitubox, Lychee Slicer, and Tango Slicer.

It supports common STL and OBJ file formats, allowing designers to prepare models using their preferred compatible 3D modeling and slicing workflow.

Why Choose the Nova 3D GEM3 Max?

The Nova 3D GEM3 Max is a strong choice for jewelry professionals who want high-resolution resin 3D printing with a larger build volume.

Its combination of fine pixel resolution, a 211 × 118 × 120 mm build area, powerful COB UV illumination, and industrial motion components makes it suitable for detailed jewelry models and small-batch production.

For jewelry designers, the main advantage is the balance between fine detail and usable production capacity. The larger platform provides more flexibility when printing multiple pieces while maintaining the resolution needed for intricate designs.

Nova 3D GEM3 Max Specifications
